libMesh::XdrMGF Class Reference

#include <xdr_mgf.h>

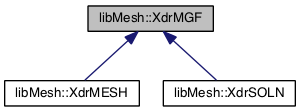

Inheritance diagram for libMesh::XdrMGF:

Public Types
enum	XdrIO_TYPE {   UNKNOWN = -1, ENCODE =0, DECODE, W_ASCII,   R_ASCII }

Public Member Functions
	XdrMGF ()
	XdrMGF ()
void	init (XdrIO_TYPE t, const char *fn, const char *type, int icnt)
virtual	~XdrMGF ()
void	fini ()
int	dataBlk (int *array, int numvar, int size)
int	dataBlk (Real *array, int numvar, int size)
LegacyXdrIO::FileFormat	get_orig_flag () const
void	set_orig_flag (LegacyXdrIO::FileFormat in_orig_flag)
void	set_num_levels (unsigned int num_levels)
unsigned int	get_num_levels ()

Protected Attributes
unsigned int	_num_levels
XdrIO_TYPE	m_type
XDR *	mp_xdr_handle
LegacyXdrIO::FileFormat	orig_flag
std::ifstream	mp_in
std::ofstream	mp_out

Private Member Functions
void	tokenize_first_line (const char *p)

Private Attributes
std::FILE *	mp_fp

Detailed Description

This class is taken directly from MGF. It facilitates reading and writing binary solution/mesh files using the xdr binary format, which allows for portable binary files across various platforms. For more information on the xdr format, see the standard C include file rpc/rpc.h.

There are essentially two inheritance trees and six classes: XdrMGF XdrHEAD ^ ^ ^ ^ | | | | XdrMESH XdrSOLN XdrMHEAD XdrSHEAD

XdrHEAD, XdrMHEAD, and XdrSHEAD just read the headers of solution and mesh files.

XdrMGF, XdrMESH, and XdrSOLN handle the "meat" of the files: everything other than the headers.

Author

Bill Barth

Robert McLay

Date

2000

Definition at line 87 of file xdr_mgf.h.

Member Enumeration Documentation

enum libMesh::XdrMGF::XdrIO_TYPE

This enum specifies the access permission which will be acquired for the current xdr file. Note that it is only possible to read (DECODE) or write (ENCODE) but not both. For ASCII type files, use WRITE or READ instead!

Enumerator
UNKNOWN
ENCODE
DECODE
W_ASCII
R_ASCII

Definition at line 100 of file xdr_mgf.h.

                  {UNKNOWN = -1, ENCODE=0, DECODE,
                   W_ASCII , R_ASCII};

Constructor & Destructor Documentation

libMesh::XdrMGF::XdrMGF ( )

inline

Constructor. Intializes the access type, xdr file handle, xdr file pointer, and originator flag. Zero is a good default value for the flag, since that is the DEAL identifier. The xdr file handle is a struct defined in the standard C header rpc/rpc.h.

Definition at line 117 of file xdr_mgf.h.

: _num_levels(0), m_type(UNKNOWN), mp_xdr_handle(0), orig_flag(LegacyXdrIO::LIBM), mp_fp(0) {}

libMesh::XdrMGF::XdrMGF ( )

inline

Definition at line 119 of file xdr_mgf.h.

: _num_levels(0), m_type(UNKNOWN), orig_flag(LegacyXdrIO::LIBM), mp_fp(0) {}

libMesh::XdrMGF::~XdrMGF ( )

virtual

Destructor. Frees the memory which was allocated to contain several strings.

Definition at line 28 of file xdr_mgf.C.

References fini().

{
  this->fini();
}

Member Function Documentation

int libMesh::XdrMGF::dataBlk	(	int *	array,
		int	numvar,
		int	size
	)

Reads/Writes a block of ints to/from the current xdr file/file handle.

Parameters

array	Pointer to data to be read/written
numvar	The total number of variables (size of the array)
size	The size of each individual variable in the array

Definition at line 264 of file xdr_mgf.C.

References DECODE, ENCODE, libMesh::libmesh_assert(), m_type, mp_in, mp_out, mp_xdr_handle, R_ASCII, and W_ASCII.

Referenced by libMesh::XdrMESH::BC(), libMesh::XdrMESH::coord(), libMesh::XdrMESH::Icon(), and libMesh::XdrSOLN::values().

{
  int totalSize = numvar*size;

  switch (m_type)
    {

#ifdef LIBMESH_HAVE_XDR

    case (XdrMGF::DECODE):
    case (XdrMGF::ENCODE):
      {
        xdr_vector(mp_xdr_handle,
                   (char *) &array[0],
                   totalSize,
                   sizeof(int),
                   (xdrproc_t) xdr_int);
        break;
      }

#endif

    case (XdrMGF::W_ASCII):
      {
        for (int i=0; i<size; i++)
          {
            for (int j=0; j<numvar; j++)
              mp_out << array[i*numvar + j] << " ";

            mp_out << '\n';
          }

        mp_out.flush();
        break;
      }

    case (XdrMGF::R_ASCII):
      {
        libmesh_assert (mp_in.good());

        for (int i=0; i<size; i++)
          {
            for (int j=0; j<numvar; j++)
              {
                mp_in >> array[i*numvar + j];
              }

            mp_in.ignore(); // Read newline
          }

        break;
      }

    default:
      // Unknown access type
      libmesh_error_msg("Unknown m_type" << m_type);
    }

  return totalSize;
}

int libMesh::XdrMGF::dataBlk	(	Real *	array,
		int	numvar,
		int	size
	)

Read/Writes a block of Reals to/from the current xdr file/file handle.

Definition at line 327 of file xdr_mgf.C.

References DECODE, ENCODE, libMesh::libmesh_assert(), m_type, mp_in, mp_out, mp_xdr_handle, R_ASCII, libMesh::Real, and W_ASCII.

{
  int totalSize = numvar*size;

  // If this function is called by coord(),
  // numvar is the problem dimension, and
  // size is the number of nodes in the problem.

  //libMesh::out << "Total amount of data to be written: " << totalSize << std::endl;

  switch (m_type)
    {

#ifdef LIBMESH_HAVE_XDR

    case (XdrMGF::DECODE):
    case (XdrMGF::ENCODE):
      {
        // FIXME - this is probably broken for Real == long double
        // RHS
        xdr_vector(mp_xdr_handle,
                   (char *) &array[0],
                   totalSize,
                   sizeof(Real),
                   (xdrproc_t) xdr_REAL);
      }

#endif

    case (XdrMGF::W_ASCII):
      {
        // Save stream flags
        std::ios_base::fmtflags out_flags = mp_out.flags();

        // We will use scientific notation with a precision of 16
        // digits in the following output.  The desired precision and
        // format will automatically determine the width.
        mp_out << std::scientific
               << std::setprecision(16);

        for (int i=0; i<size; i++)
          {
            for (int j=0; j<numvar; j++)
              mp_out << array[i*numvar + j] << " \t";

            mp_out << '\n';
          }

        // Restore stream flags
        mp_out.flags(out_flags);

        mp_out.flush();
        break;
      }

    case (XdrMGF::R_ASCII):
      {
        libmesh_assert (mp_in.good());

        for (int i=0; i<size; i++)
          {
            libmesh_assert (mp_in.good());

            for (int j=0; j<numvar; j++)
              mp_in >> array[i*numvar + j];

            mp_in.ignore(); // Read newline
          }

        break;
      }

    default:
      // Unknown access type
      libmesh_error_msg("Unknown m_type" << m_type);
    }

  return totalSize;
}

void libMesh::XdrMGF::fini

(

)

Finalizes operations on the current xdr file handle, and closes the xdr file.

Uses xdr_destroy found in rpc/rpc.h.

Definition at line 35 of file xdr_mgf.C.

References libmesh_nullptr, mp_fp, and mp_xdr_handle.

Referenced by init(), and ~XdrMGF().

{

#ifdef LIBMESH_HAVE_XDR

  if (mp_xdr_handle)
    {
      //libMesh::out << "Destroying XDR file handle." << std::endl;
      xdr_destroy(mp_xdr_handle);
    }

  //libMesh::out << "Deleting the file handle pointer." << std::endl;
  delete mp_xdr_handle;

  mp_xdr_handle = libmesh_nullptr;

#endif

  if (mp_fp)
    {
      //libMesh::out << "Closing file." << std::endl;
      std::fflush(mp_fp);
      std::fclose(mp_fp);
    }

  mp_fp = libmesh_nullptr;
}

unsigned int libMesh::XdrMGF::get_num_levels ( )

inline

Get number of levels

Definition at line 184 of file xdr_mgf.h.

References _num_levels.

Referenced by libMesh::XdrMESH::header(), init(), and libMesh::LegacyXdrIO::read_mesh().

{ return _num_levels; }

LegacyXdrIO::FileFormat libMesh::XdrMGF::get_orig_flag ( ) const

inline

Get the originator flag.

Definition at line 168 of file xdr_mgf.h.

References orig_flag.

Referenced by init(), libMesh::LegacyXdrIO::read_mesh(), and libMesh::LegacyXdrIO::write_mesh().

{ return orig_flag; }

void libMesh::XdrMGF::init	(	XdrMGF::XdrIO_TYPE	t,
		const char *	fn,
		const char *	type,
		int	icnt
	)

Initialization of the xdr file. This function performs the following operations:

• Closes the old xdr file if necessary.
• Creates a new xdr file name and opens this file.
• Opens the appropriate xdr file handle.
• Reads/Writes a signature to the file.

Definition at line 68 of file xdr_mgf.C.

References libMesh::LegacyXdrIO::DEAL, DECODE, ENCODE, fini(), get_num_levels(), get_orig_flag(), libMesh::LegacyXdrIO::LIBM, m_type, libMesh::LegacyXdrIO::MGF, mp_fp, mp_in, mp_out, mp_xdr_handle, libMesh::Quality::name(), orig_flag, libMesh::out, R_ASCII, tokenize_first_line(), and W_ASCII.

Referenced by libMesh::XdrSOLN::init(), and libMesh::XdrMESH::init().

{
  m_type=t;

  // Close old file if necessary
  if (mp_fp) this->fini();


  // Open file
  switch (m_type)
    {

#ifdef LIBMESH_HAVE_XDR

    case (XdrMGF::ENCODE):
    case (XdrMGF::DECODE):
      {
        mp_fp = fopen (fn, (m_type == ENCODE) ? "w" : "r");

        // Make sure the file is ready for use
        if (!mp_fp)
          libmesh_error_msg("XDR Error: Accessing file: " << fn << " failed.");

        // Create the XDR handle
        mp_xdr_handle = new XDR;
        xdrstdio_create(mp_xdr_handle,
                        mp_fp,
                        ((m_type == ENCODE) ? XDR_ENCODE : XDR_DECODE));

        break;
      }

#endif

    case (XdrMGF::R_ASCII):
      {
        mp_in.open(fn, std::ios::in);

        // Make sure it opened correctly
        if (!mp_in.good())
          libmesh_file_error(fn);

        break;
      }

    case (XdrMGF::W_ASCII):
      {
        mp_out.open(fn, std::ios::out);

        // Make sure it opened correctly
        if (!mp_out.good())
          libmesh_file_error(fn);

        break;
      }

    default:
      libmesh_error_msg("Unrecognized file access type!");
    }





  // Read/Write the file signature
  const int  bufLen = 12;
  char       buf[bufLen+1];

  switch (m_type)
    {

#ifdef LIBMESH_HAVE_XDR

    case (XdrMGF::ENCODE):
      {
        char * p = &buf[0];
        const LegacyXdrIO::FileFormat orig = this->get_orig_flag();

        std::ostringstream name;
        if (orig == LegacyXdrIO::DEAL)
          name << "DEAL 003:003";

        else if (orig == LegacyXdrIO::MGF)
          name << "MGF  002:000";

        else if (orig == LegacyXdrIO::LIBM)
          name << "LIBM " << this->get_num_levels();

        else
          libmesh_error_msg("Unknown orig " << orig);

        // Fill the buffer
        std::sprintf(&buf[0], "%s", name.str().c_str());

        xdr_string(mp_xdr_handle, &p, bufLen);  // Writes binary signature

        break;
      }

    case (XdrMGF::DECODE):
      {
        char * p = &buf[0];
        xdr_string(mp_xdr_handle, &p, bufLen); // Reads binary signature

        // Set the number of levels used in the mesh
        this->tokenize_first_line(p);

        break;
      }

#endif

    case (XdrMGF::W_ASCII):
      {
        const LegacyXdrIO::FileFormat orig = this->get_orig_flag();

        if (orig == LegacyXdrIO::DEAL)
          std::sprintf(&buf[0], "%s %03d:%03d", "DEAL", 3, 3);

        else if (orig == LegacyXdrIO::MGF)
          std::sprintf(&buf[0], "%s %03d:%03d", "MGF ", 2, 0);

        else if (orig == LegacyXdrIO::LIBM)
          std::sprintf(&buf[0], "%s %d", "LIBM", this->get_num_levels());

        mp_out << buf << '\n';

        break;
      }

    case (XdrMGF::R_ASCII):
      {

#ifdef __HP_aCC
        // weirdly, _only_ here aCC
        // is not fond of mp_in.getline()
        // however, using mp_in.getline()
        // further below is ok...
        std::string buf_buf;
        std::getline (mp_in, buf_buf, '\n');
        libmesh_assert_less_equal (buf_buf.size(), bufLen);

        buf_buf.copy (buf, std::string::npos);
#else

        // Here we first use getline() to grab the very
        // first line of the file into a char buffer.  Then
        // this line is tokenized to look for:
        // 1.) The name LIBM, which specifies the new Mesh style.
        // 2.) The number of levels in the Mesh which is being read.
        // Note that "buf" will be further processed below, here we
        // are just attempting to get the number of levels.
        mp_in.getline(buf, bufLen+1);

#endif

        // Determine the number of levels in this mesh
        this->tokenize_first_line(buf);

        break;
      }

    default:
      libmesh_error_msg("Unknown m_type" << m_type);
    }



  // If you are reading or decoding, process the signature
  if ((m_type == R_ASCII) || (m_type == DECODE))
    {
      char name[5];
      std::strncpy(name, &buf[0], 4);
      name[4] = '\0';

      if (std::strcmp (name, "DEAL") == 0)
        {
          this->orig_flag = LegacyXdrIO::DEAL; // 0 is the DEAL identifier by definition
        }
      else if (std::strcmp (name, "MGF ") == 0)
        {
          this->orig_flag = LegacyXdrIO::MGF; // 1 is the MGF identifier by definition
        }
      else if (std::strcmp (name, "LIBM") == 0)
        {
          this->orig_flag = LegacyXdrIO::LIBM; // the New and Improved XDA
        }

      else
        libmesh_error_msg("ERROR: No originating software can be determined for header string '" << name);
    }

}

void libMesh::XdrMGF::set_num_levels ( unsigned int  num_levels )

inline

Set number of levels

Definition at line 179 of file xdr_mgf.h.

References _num_levels.

Referenced by libMesh::LegacyXdrIO::write_mesh().

{ _num_levels = num_levels; }

void libMesh::XdrMGF::set_orig_flag ( LegacyXdrIO::FileFormat  in_orig_flag )

inline

Set the originator flag.

Definition at line 173 of file xdr_mgf.h.

References orig_flag.

Referenced by libMesh::LegacyXdrIO::read_mesh(), and libMesh::LegacyXdrIO::write_mesh().

{ orig_flag = in_orig_flag; }

void libMesh::XdrMGF::tokenize_first_line ( const char *  p )

inlineprivate

This function allows us to set the number of levels in the mesh when reading.

Definition at line 242 of file xdr_mgf.h.

Referenced by init().

  {
    std::string buf_str(p);
    std::stringstream ss(buf_str);

    char token[256];
    ss >> token;
    if(std::strcmp(token,"LIBM") == 0)
      {
        ss >> token;
        _num_levels = std::atoi(token);
      }

  }

Member Data Documentation

unsigned int libMesh::XdrMGF::_num_levels

protected

Number of levels of refinement in the mesh

Definition at line 191 of file xdr_mgf.h.

Referenced by get_num_levels(), and set_num_levels().

XdrIO_TYPE libMesh::XdrMGF::m_type

protected

Specifies the read/write permission for the current xdr file. Possibilities are:

• UNKNOWN = -1
• ENCODE = 0
• DECODE = 1

Definition at line 200 of file xdr_mgf.h.

Referenced by dataBlk(), libMesh::XdrSOLN::header(), libMesh::XdrMESH::header(), and init().

std::FILE* libMesh::XdrMGF::mp_fp

private

Definition at line 236 of file xdr_mgf.h.

Referenced by fini(), and init().

std::ifstream libMesh::XdrMGF::mp_in

protected

An input file stream object

Definition at line 228 of file xdr_mgf.h.

Referenced by dataBlk(), libMesh::XdrSOLN::header(), libMesh::XdrMESH::header(), and init().

std::ofstream libMesh::XdrMGF::mp_out

protected

An output file stream object.

Definition at line 233 of file xdr_mgf.h.

Referenced by dataBlk(), libMesh::XdrSOLN::header(), libMesh::XdrMESH::header(), and init().

XDR* libMesh::XdrMGF::mp_xdr_handle

protected

Pointer to the standard {xdr} struct. See the standard header file rpc/rpc.h for more information.

Definition at line 210 of file xdr_mgf.h.

Referenced by dataBlk(), fini(), libMesh::XdrSOLN::header(), libMesh::XdrMESH::header(), and init().

LegacyXdrIO::FileFormat libMesh::XdrMGF::orig_flag

protected

Flag indicating how much checking we need to do. We can read in mgf meshes more quickly because there is only one type of element in these meshes. Deal meshes on the other hand will require a check for each element to find out what type it is. Possible values are:

• 0: It's an DEAL style mesh
• 1: It's a MGF style mesh

Definition at line 223 of file xdr_mgf.h.

Referenced by get_orig_flag(), libMesh::XdrMESH::header(), init(), and set_orig_flag().

---

The documentation for this class was generated from the following files:

• xdr_mgf.h
• xdr_mgf.C
