libMesh::XdrHEAD Class Reference

#include <xdr_head.h>

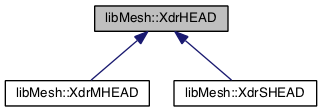

Inheritance diagram for libMesh::XdrHEAD:

Public Member Functions
	XdrHEAD ()
virtual	~XdrHEAD ()
void	setId (const char *id)
const char *	getId () const
void	setTitle (const char *title)
const char *	getTitle () const
void	setNumNodes (int numNodes)
int	getNumNodes () const
void	setNumBCs (int numBCs)
int	getNumBCs () const
void	setStrSize (int strSize)

Protected Member Functions
char *	cpyString (const char *src, int len=-1)

Protected Attributes
int	m_wrtVar
int	m_numvar
int	m_meshCnt
int	m_kstep
int	m_numel
int	m_numNodes
int	m_sumWghts
int	m_numBCs
int	m_strSize
char *	mp_id
char *	mp_title
char *	mp_userTitle
char *	mp_varTitle
xdr_Real	m_time

Private Member Functions
	XdrHEAD (const XdrHEAD &)
const XdrHEAD &	operator= (const XdrHEAD &)

Detailed Description

The XdrHEAD class. This is a base class for deriving either solution (XdrSHEAD) or mesh (XdrMHEAD) header interface classes.

Author

Bill Barth

Robert McLay

Date

2000

Definition at line 36 of file xdr_head.h.

Constructor & Destructor Documentation

libMesh::XdrHEAD::XdrHEAD

(

)

Constructor.

Definition at line 26 of file xdr_head.C.

References m_kstep, m_meshCnt, m_numBCs, m_numel, m_numNodes, m_numvar, m_strSize, m_sumWghts, m_time, m_wrtVar, mp_id, mp_title, mp_userTitle, and mp_varTitle.

{
  m_wrtVar = 0;
  m_numvar = 0;

  m_meshCnt = 0;
  m_kstep = 0;

  m_numel = 0;
  m_numNodes = 0;
  m_sumWghts = 0;
  m_numBCs = 0;
  m_strSize = 0;
  mp_id = 0;
  mp_title = 0;
  mp_userTitle = 0;
  mp_varTitle = 0;

  m_time = 0;
}

libMesh::XdrHEAD::~XdrHEAD ( )

virtual

Destructor.

Definition at line 49 of file xdr_head.C.

References mp_id, mp_title, mp_userTitle, and mp_varTitle.

{
  delete [] mp_id;
  delete [] mp_title;
  delete [] mp_userTitle;
  delete [] mp_varTitle;
}

libMesh::XdrHEAD::XdrHEAD ( const XdrHEAD &  )

private

Member Function Documentation

char * libMesh::XdrHEAD::cpyString ( const char *  src, int  len = -1  )

protected

Uses std::memcpy to create an exact copy of src, then returns that copy. Note: I don't know where the memory allocated for this copy gets deleted!

Returns

Copy of src

Definition at line 59 of file xdr_head.C.

References libmesh_nullptr.

Referenced by libMesh::XdrMESH::header(), setId(), setTitle(), libMesh::XdrSHEAD::setUserTitle(), and libMesh::XdrSHEAD::setVarTitle().

{
  char * temp = libmesh_nullptr;
  int myLen = len;
  if(src)
    {
      if (myLen == -1)
        myLen = cast_int<int>(std::strlen(src))+1;
      temp = new char[myLen];
      temp = (char *) std::memcpy(temp, src, (myLen)*sizeof(char));
    }
  return temp;
}

const char* libMesh::XdrHEAD::getId ( ) const

inline

Get the mesh/solution file id.

Definition at line 57 of file xdr_head.h.

References mp_id.

Referenced by libMesh::XdrSOLN::header(), and libMesh::XdrMESH::header().

{ return mp_id; }

int libMesh::XdrHEAD::getNumBCs ( ) const

inline

Get the number of boundary conditions in them mesh/solution file.

Definition at line 93 of file xdr_head.h.

References m_numBCs.

Referenced by libMesh::LegacyXdrIO::read_mesh().

{ return m_numBCs; }

int libMesh::XdrHEAD::getNumNodes ( ) const

inline

Get the total number of nodes in the mesh/solution file.

Definition at line 79 of file xdr_head.h.

References m_numNodes.

Referenced by libMesh::LegacyXdrIO::read_mesh(), and libMesh::LegacyXdrIO::read_soln().

{ return m_numNodes; }

const char* libMesh::XdrHEAD::getTitle ( ) const

inline

Get the mesh/solution file title.

Definition at line 67 of file xdr_head.h.

References mp_title.

Referenced by libMesh::XdrSOLN::header(), and libMesh::XdrMESH::header().

{ return mp_title; }

const XdrHEAD& libMesh::XdrHEAD::operator= ( const XdrHEAD &  )

private

void libMesh::XdrHEAD::setId ( const char *  id )

inline

Set the mesh/solution file id.

Definition at line 52 of file xdr_head.h.

References cpyString(), and mp_id.

Referenced by libMesh::XdrSOLN::header(), libMesh::XdrMESH::header(), libMesh::LegacyXdrIO::write_mesh(), and libMesh::LegacyXdrIO::write_soln().

{ delete [] mp_id; mp_id = cpyString(id); }

void libMesh::XdrHEAD::setNumBCs ( int  numBCs )

inline

Set the number of boundary conditions in the mesh/solution file.

Definition at line 86 of file xdr_head.h.

References m_numBCs.

Referenced by libMesh::LegacyXdrIO::write_mesh(), and libMesh::LegacyXdrIO::write_soln().

{ m_numBCs = numBCs; }

void libMesh::XdrHEAD::setNumNodes ( int  numNodes )

inline

Set the total number of nodes in the mesh/solution file.

Definition at line 73 of file xdr_head.h.

References m_numNodes.

Referenced by libMesh::LegacyXdrIO::write_mesh(), and libMesh::LegacyXdrIO::write_soln().

{ m_numNodes = numNodes; }

void libMesh::XdrHEAD::setStrSize ( int  strSize )

inline

Set the string size of the mesh/solution file. (?)

Definition at line 99 of file xdr_head.h.

References m_strSize.

Referenced by libMesh::LegacyXdrIO::write_mesh(), and libMesh::LegacyXdrIO::write_soln().

{ m_strSize = strSize; }

void libMesh::XdrHEAD::setTitle ( const char *  title )

inline

Set the mesh/solution file title.

Definition at line 62 of file xdr_head.h.

References cpyString(), and mp_title.

Referenced by libMesh::XdrSOLN::header(), libMesh::XdrMESH::header(), libMesh::LegacyXdrIO::write_mesh(), and libMesh::LegacyXdrIO::write_soln().

{ delete [] mp_title; mp_title = cpyString(title); }

Member Data Documentation

int libMesh::XdrHEAD::m_kstep

protected

The internal solution number.

Definition at line 133 of file xdr_head.h.

Referenced by libMesh::XdrSOLN::header(), libMesh::XdrSHEAD::setKstep(), and XdrHEAD().

int libMesh::XdrHEAD::m_meshCnt

protected

The mesh file number which corresponds to a given solution file.

Definition at line 128 of file xdr_head.h.

Referenced by libMesh::XdrSOLN::header(), libMesh::XdrSHEAD::setMeshCnt(), and XdrHEAD().

int libMesh::XdrHEAD::m_numBCs

protected

Number of boundary conditions in the solution/mesh.

Definition at line 158 of file xdr_head.h.

Referenced by getNumBCs(), libMesh::XdrMESH::header(), setNumBCs(), and XdrHEAD().

int libMesh::XdrHEAD::m_numel

protected

Number of elemetns in the solution/mesh.

Definition at line 139 of file xdr_head.h.

Referenced by libMesh::XdrMHEAD::getNumEl(), libMesh::XdrMESH::header(), libMesh::XdrMHEAD::setNumEl(), and XdrHEAD().

int libMesh::XdrHEAD::m_numNodes

protected

Number of nodes in the solution/mesh.

Definition at line 145 of file xdr_head.h.

Referenced by getNumNodes(), libMesh::XdrSOLN::header(), libMesh::XdrMESH::header(), setNumNodes(), and XdrHEAD().

int libMesh::XdrHEAD::m_numvar

protected

Total number of variables, may differ from the total number of variables actually written.

Definition at line 121 of file xdr_head.h.

Referenced by libMesh::XdrSOLN::header(), libMesh::XdrSHEAD::setNumVar(), and XdrHEAD().

int libMesh::XdrHEAD::m_strSize

protected

String size (Not sure of what?)

Definition at line 163 of file xdr_head.h.

Referenced by libMesh::XdrSOLN::header(), libMesh::XdrMESH::header(), setStrSize(), and XdrHEAD().

int libMesh::XdrHEAD::m_sumWghts

protected

Total mesh weighting i.e. How many nodes are there and where are they?

Definition at line 152 of file xdr_head.h.

Referenced by libMesh::XdrMHEAD::getSumWghts(), libMesh::XdrMESH::header(), libMesh::XdrMHEAD::setSumWghts(), and XdrHEAD().

xdr_Real libMesh::XdrHEAD::m_time

protected

Current solution time.

Definition at line 188 of file xdr_head.h.

Referenced by libMesh::XdrSOLN::header(), libMesh::XdrSHEAD::setTime(), and XdrHEAD().

int libMesh::XdrHEAD::m_wrtVar

protected

Set the string size of the mesh /solutionfile. (?) Number of variables written to output, e.g. u,v,w,p,T = 5

Definition at line 113 of file xdr_head.h.

Referenced by libMesh::XdrSHEAD::getWrtVar(), libMesh::XdrSOLN::header(), libMesh::XdrSHEAD::setWrtVar(), and XdrHEAD().

char* libMesh::XdrHEAD::mp_id

protected

An ID string for the file.

Definition at line 168 of file xdr_head.h.

Referenced by getId(), libMesh::XdrSOLN::header(), libMesh::XdrMESH::header(), setId(), XdrHEAD(), and ~XdrHEAD().

char* libMesh::XdrHEAD::mp_title

protected

A title string for the file.

Definition at line 173 of file xdr_head.h.

Referenced by getTitle(), libMesh::XdrSOLN::header(), libMesh::XdrMESH::header(), setTitle(), XdrHEAD(), and ~XdrHEAD().

char* libMesh::XdrHEAD::mp_userTitle

protected

User's simulation title

Definition at line 178 of file xdr_head.h.

Referenced by libMesh::XdrSHEAD::getUserTitle(), libMesh::XdrSOLN::header(), libMesh::XdrSHEAD::setUserTitle(), XdrHEAD(), and ~XdrHEAD().

char* libMesh::XdrHEAD::mp_varTitle

protected

List of null-separated variable names.

Definition at line 183 of file xdr_head.h.

Referenced by libMesh::XdrSHEAD::getVarTitle(), libMesh::XdrSOLN::header(), libMesh::XdrSHEAD::setVarTitle(), XdrHEAD(), and ~XdrHEAD().

---

The documentation for this class was generated from the following files:

• xdr_head.h
• xdr_head.C
